Máquina de torcer fio para bordado de seda artificial
video

Máquina de torcer fio para bordado de seda artificial

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients' requirement.
Enviar inquérito
Converse agora
Introdução de Produto

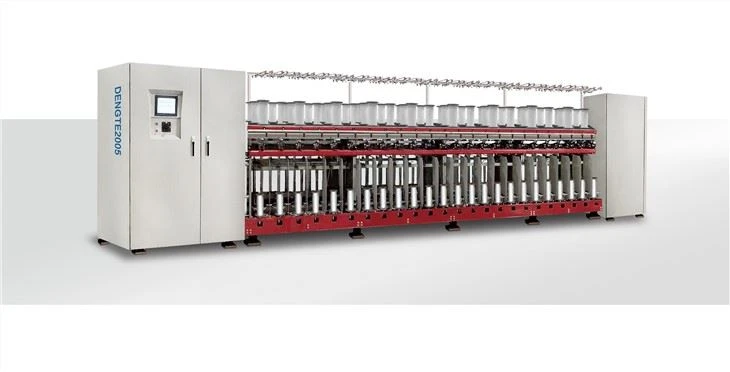

DT2005 Precision CNC Composite Twisting Machine

máquina twister de fio de bordado de rayon

The finished yarn can reach the highest international quality standards and can be produced to some high value-added products. We can also undertake various kinds of processing business such as embroidery thread, knitting yarn, zipper, luggage lines etc according to clients' requirement. If you need some kind of thread and yarns, not machine, you can also call us and tell us you requirements about thread or yarns and we will produce it in accordance with your demand.rayon embroidery thread doubling twister machine

Fios de alta qualidade

Rolo de guincho acionado por fuso único, torção de fio mais precisa, sem extrusão de força externa, seção transversal mais arredondada;

Exibição do rastreamento do computador na velocidade do fuso, garante a precisão da torção inicial e composta;

Nenhum material importado de petróleo de fabricação de aço de alta velocidade, menos quebra;

Enrolamento de tensão constante NC, garante velocidade de rosca constante, peso de volume de até 1,6 kg.


Faixa de contagem de dobras:

21: 50D—500D

31: 50D—1000D

Os produtos aplicam-se a costura, bordado, linha colada.

máquina twister de fio de bordado de rayon

Arranjo do fuso

21

31

Fuso de alimentação NO. (1 seção)

36

40

36

Eixo do anel NO. (1 seção)

18

20

12

Fuso de alimentação NO. (10seção)

360

400

360

Eixo do anel NO. (10seção)

180

200

120


Data técnica principal:

Faixa de torção

650 a 1250 t/m, 3 a 32 t/polegada

Direção de torção

S ou Z mutável

Montar as extremidades

2-4

Anel

Φ115mm Φ140mm

Altura máxima do enrolamento

330 mm

Acionamento do fuso

Condução de bel tangencial

Modo de início

Velocidade contínua controlada por inversor

Pegar-medidor do fuso

21 162mm 180mm

31 270 mm

Velocidade do fuso

6000-7500rpm

Ocupar-capacidade da bobina

21 1,1 kg

31 1,6kg ou 2kg

Potência máxima instalada

16,1kw

Tamanho único

LWH=18.84M1.10M1.80M

1-Twisting Machine2-Rewinding Machine3-Thread & Yarns4-Knitting Machine


Informações relacionadas à indústria têxtil

máquina twister de fio de bordado de rayon


Lida Group is the world's leading supplier of staple spinning machinery and components. It is also the world's only manufacturer of full process spinning equipment that can provide all four spinning technologies from raw materials to yarn. Its headquarters is located in Winterthur, Switzerland. Lida (China) Textile Instrument Co., Ltd., a wholly-owned subsidiary of Lida Group, is located in Xuejia Town, Changzhou National High tech Zone. In 2013, after the second factory of Lida Changzhou was put into operation, Changzhou became the largest production base of Lida Group in the world.

It is understood that in 2021, Lida Group achieved sales revenue of US 2.4 billion, more than double that in 2020. Among them, China's sales revenue accounts for 15 percent of the world. According to Hu Benshi's analysis, on the one hand, the global market continues to improve, and the demand for spinning equipment is increasing; On the other hand, the transfer of equipment production from the Swiss headquarters and the struggle of Lida China's management for the transfer of production lines have also given Changzhou, as the largest production base in China, room for a leap forward.

"Changzhou has outstanding transportation location advantages. It is a transportation hub in the Yangtze River Delta. The surrounding supply chain is also very sound. At the same time, it can find suitable talents." Talking about the advantages of Changzhou, Hu Benshi is not stingy. Hu Benshi comes from Germany and has worked and lived in China for many years. He himself lives in Shanghai. He said that it is very convenient to take daily holidays and travel between Changhu and Shanghai.

Atualmente, a Lida estabeleceu uma linha de produção de produtos de instrumentos têxteis localizados na China, incluindo máquina de fiação a rotor semi{0}automática, estirador e penteadeira, cardadora e máquina de abertura e limpeza. A base de Changzhou tem mais de 900 funcionários e um forte R amp; equipe D. Entre eles, uma máquina de cardar desenvolvida pela equipe nacional e voltada para os mercados chinês e indiano é superior a produtos similares em eficiência e economia de energia.

I saw this carding machine in Lida overseas full process spinning center. Shen Hao, manager of air-jet textile products, made an image analogy: "the carding machine is like a comb, combing the fibers transported through the pipeline, removing impurities, neps and some short fibers in the fibers, so as to make the fibers arranged neatly." In the workshop, cotton slivers are filled in cotton sliver barrels for the next process. Shen Hao introduced that the biggest feature of Lida carding machine is that the single machine capacity can be increased by 20 percent - 25 percent compared with similar products, and the energy saving and consumption reduction can be increased by 10 percent . Among them, the capacity of the latest generation C80 carding machine has reached 300 kg / h. "During the Spring Festival this year, we resumed production on the third day of the new year according to the production arrangements of enterprises and the local Chinese new year policy issued by the government, and communicated and coordinated with surrounding suppliers to ensure that the supporting facilities required for production during the festival are in place."

"At the end of last year, Lida Group completed the acquisition of relevant businesses, assets and technologies of Zhuolang group in China. The transfer of European companies will be completed in the first half of 2022. At that time, Lida's equipment suppliers will be more complete in China, which will also provide support for us to continuously expand the production capacity of China base and occupy the domestic market and global market share."


Tag: máquina twister de fio bordado de rayon, China, fabricantes, fornecedores, fábrica
